SEMI-AUTOMATIC-SCREEN-FILTER-bg

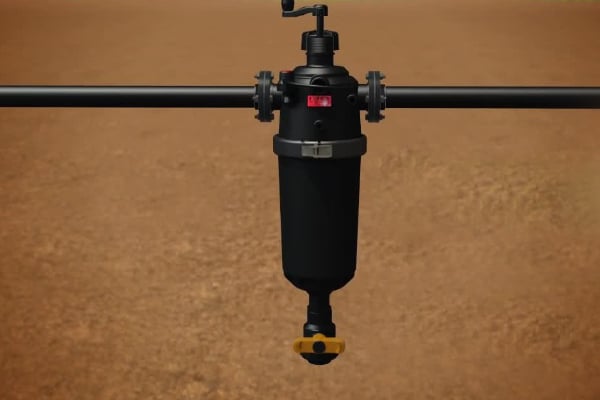

SEMI AUTOMATIC SCREEN FILTER

IS 2345 : 1000

Sizes	Max. Pressure	Range of Flow Rate	Clean Pressure Drop	Filtration Surface Area
2′	10 Kg/cm²	18 – 27 m³/hr	Max. 0.26 Kg/cm²	554 – 831 cm²
2 1/2′
3′

Disc-Filter-Bg

DISC FILTER

IS 2345 : 1000

Sizes	Max. Pressure	Range of Flow Rate	Clean Pressure Drop	Filtration Surface Area
2′	10 Kg/cm²	18 – 52 m³/ hr	Max. 0.25 – 0.31 Kg/cm²	878 – 1193 cm²
2 1/2′
3′

HYDRO-CYCLONE-FILTER-bg

HYDRO CYCLONE FILTER

IS 2345 : 1000

Sizes	Nominal Size inlet/outlet connection	Maximum Operating Pressure	Recommended Range of Design Flow Rates
3′	80 mm	6 Kg/cm²	35 – 52 m³/ hr’

SCREEN-FILTER-bg

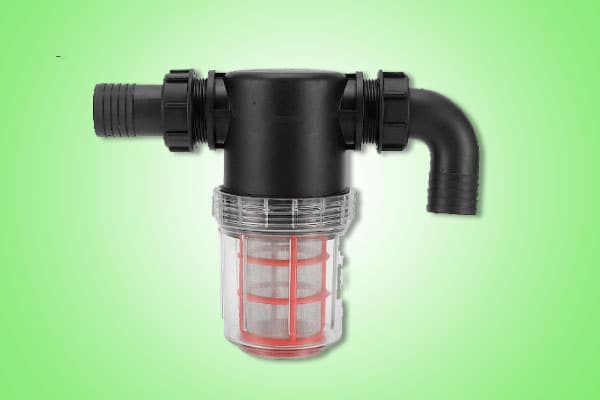

SCREEN FILTER

IS 2345 : 1000

Sizes	Max. Pressure	Range of Flow Rate	Clean Pressure Drop	Filtration Surface Area	Design
2′	6 – 10 Kg/cm²	18 – 45 m³/ hr	Max. 0.16 – 0.25 Kg/cm²	554 – 831 cm²	T & Y Type
2 1/2′
3′
